Generating sounds on the Arduino

August 13, 2020

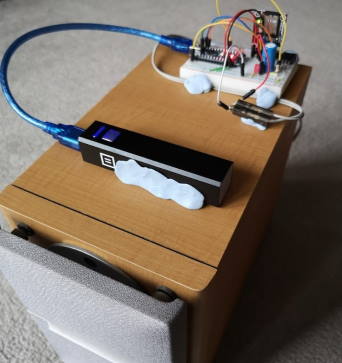

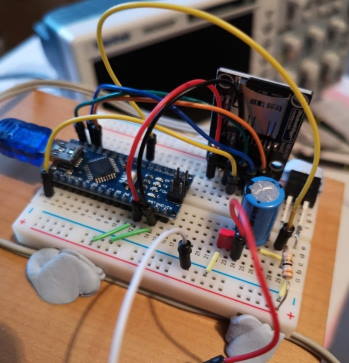

Arduino WAV Player 1 Arduino WAV Player 2

This is a small project to read wav files from a micro SD card via an Arduino Nano and then play them directly to a loudspeaker. I’ll state upfront that this isn’t the easiest way to do this (there are MP3 modules and libraries), but I wanted to:

Understand sound generation using a microcontroller from first principles
Have some tools / ideas about how to generate sounds for any future projects

As an idea of the sort of thing I was thinking of - I’ve been thinking of a DIY “ring” doorbell. I already have a camera that can see anyone approaching the front door. A 433.92MHz receiver could detect when the doorbell is pressed (so no new doorbell required). A Raspberry Pi (i.e. the one with the camera) controlling it all and sending and receiving to my mobile phone. A lot more work than just buying a Ring doorbell - but a lot more satisfying!

To drive the loudspeaker I used a power MOSFET. Ideally I would use two (or maybe four) MOSFETs in a push pull arrangement. I was more interested in getting the software right however, so I didn’t spend a lot of time getting the hardware correct. [Figure 3 on this page][Class D Audio Amplifiers] would seem be the ideal solution, but I suspect that if I went down this route it would need four independently controllable PWM inputs - and having given this a bit of thought - I think this would be best done with an FPGA. That’s a project for another day! (but it would be pretty awesome). …or maybe I’ll just buy an audio amplifier module from Aliexpress :)

Hardware:

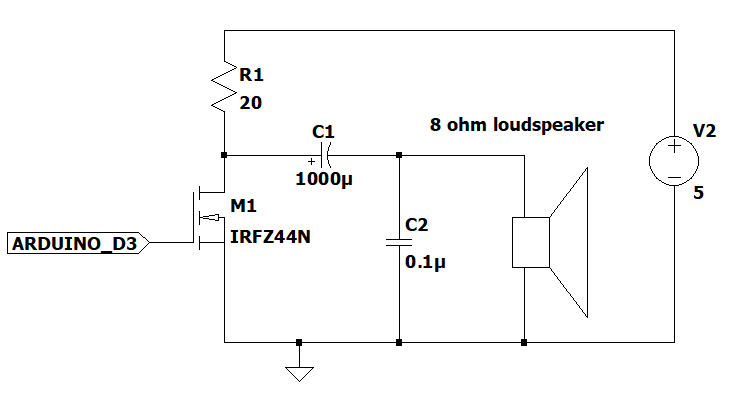

Arduino Loudspeaker Driver

…and an SD card module for the Arduino. They cost about 50p if you get them directly from China.

I realized early on that PWM was the easiest way to generate the sound - and after some investigation and calculations worked out that I could have 8 bit audio with a PWM running at 62.5KHz (16MHz clock divided by 256).

PWM code (62.5KHz):

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
inline void fastWriteD3(int value)
{
  if (value) PORTD |= 1 << 3;
  else PORTD &= ~(1 << 3);
}

// Using Timer 2 B = pin D3, 62.5KHz i.e. no prescaler
void setupPWMTimer()
{
  pinMode(3, OUTPUT);
  //pinMode(11, OUTPUT);
  TCCR2A = _BV(COM2B1) | _BV(WGM21) | _BV(WGM20);
  TCCR2B = _BV(CS20);
  OCR2B = 0x80;
}

void updatePWMTimer(uint8_t val)
{
  if (val == 0)
  {
    TCCR2A &= ~_BV(COM2B1);
    fastWriteD3(0);
  }
  else if (val == 0xff)
  {
    TCCR2A &= ~_BV(COM2B1);
    fastWriteD3(1);
  }
  else
  {
    TCCR2A |= _BV(COM2B1);
    OCR2B = val;
  }
}

The next thing I needed was to play each sample. I probably could do one channel at 44KHz but decided to use 16KHz - which would mean the upper frequency limit would be 8KHz. Nowhere near HiFi, but easily good enough for what I was trying to achieve. So I created an interrupt routine that occurred 16,000 times a second with the following code:

Interrupt code (16KHz):

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
ISR(TIMER1_COMPA_vect)
{
  if (dataFirst != dataLast)
  {
    uint8_t val = dataBuffer[dataFirst++];
    if (dataFirst == DATA_BUFFER_SIZE)
    {
      dataFirst = 0;
    }
    updatePWMTimer(val);
  }
  else if (!paused)
  {
    noData = true;
  }
}

// Set timer1 interrupt at 16kHz
void setup16KHzTimer()
{
  TCCR1A = 0;
  TCCR1B = 0;
  TCNT1  = 0;               //initialize counter value to 0
  OCR1A = 1000;             // = (16*10^6) / (1 * 16000) - 1 (must be <65536)
  TCCR1B |= (1 << WGM12);   // turn on CTC mode
  TCCR1B |= (1 << CS10);    // Set CS10 bit for no prescaler
  TIMSK1 |= (1 << OCIE1A);  // enable timer compare interrupt
  sei();
}

Every time the interrupt occurs one sample of the WAV file should be sent to the PWM. You can see this in the ISR.

I haven’t included the SD card reading code here (because it’s not the reason for this article), but the entire sketch can be be found [on this github repo][Arduino Code Github Repo].

And this is what it sounds like:

There seems to be lots of noise in the background of both tracks - but it was raining very hard outside when I recorded them - so it might be that.

I created the WAV files using Audacity - 8 bit @ 16,000 samples per second - which works out to about 1 MByte / minute. I’ll be the first to admit it’s not HiFi quality - but it’s not bad considering how it’s being generated (well I think anyway :))

What I learnt#

I did some tests and found that I could read the data from the SD card about 7 times faster than I needed it.

Therefore I should be able to do stereo (although I’m not sure what the point would be) but I would need another PWM channel.
