NRF24L01 on Raspberry Pi

June 7, 2020

OK, so just for the record, I’ve tried using the NRF24L01 on the Raspberry Pi (via tha GPIO SPI pins) and I don’t recommend it.

So the following is just a record of what I did, in case I ever change my mind :).

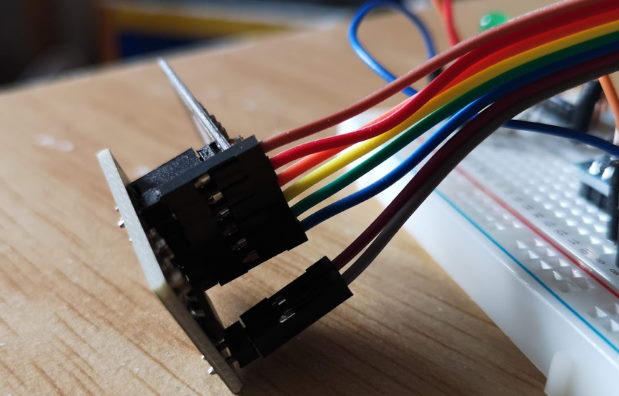

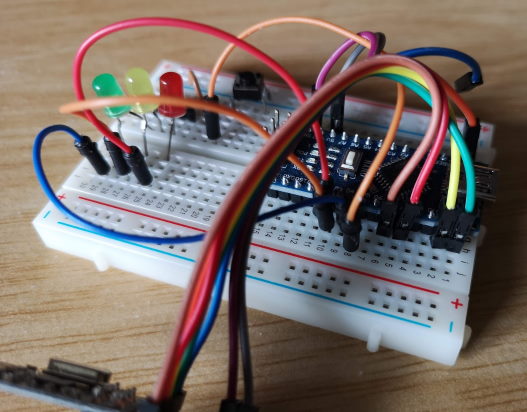

RPI NRF Board Wiring

NRF24L01 Side  Wire   Raspberry Pi Side
-------------  ----   -----------------
MISO           White   GPIO  9 (SPI_MISO)
SCK            Grey    GPIO 11 (SPI_SCLK)
CE             Orange  GPIO 25
GND            Black   GND     (PIN 20)
IRQ            Brown   GPIO 22
MOSI           Purple  GPIO 10 (SPI_MOSI)
CSN            Yellow  GPIO  8 (SPI_CE0)
VCC            Red     3.3V    (PIN 1)

The Raspberry Pi code consisted of two python files which had to be in the same folder:

nrf24TestSend.py:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
#!/usr/bin/python3
import RPi.GPIO as GPIO  # import gpio
import time      #import time library
import spidev
from lib_nrf24 import NRF24   #import NRF24 library

# Loosely based on: https://circuitdigest.com/microcontroller-projects/wireless-rf-communication-between-arduino-and-raspberry-pi-using-nrf24l01

GPIO.setmode(GPIO.BCM)       # set the gpio mode

  # set the pipe address. this address shoeld be entered on the receiver alo
pipes = [[0xE0, 0xE0, 0xF1, 0xF1, 0xE0], [0xF1, 0xF1, 0xF0, 0xF0, 0xE0]]
radio = NRF24(GPIO, spidev.SpiDev())   # use the gpio pins
radio.begin(0, 25)   # start the radio and set the ce,csn pin ce= GPIO08, csn= GPIO25
radio.setPayloadSize(32)  #set the payload size as 32 bytes
radio.setChannel(0x76) # set the channel as 76 hex
radio.setDataRate(NRF24.BR_1MBPS)    # set radio data rate
radio.setPALevel(NRF24.PA_MAX)  # set PA level

radio.setAutoAck(True)       # set acknowledgement as true
radio.enableDynamicPayloads()
radio.enableAckPayload()

radio.openWritingPipe(pipes[0])     # open the defined pipe for writing
radio.printDetails()      # print basic detals of radio

sendMessage = list("Hi..Arduino UNO")  #the message to be sent
while len(sendMessage) < 32:
    sendMessage.append(0)

while True:
    start = time.time()      #start the time for checking delivery time
    radio.write(sendMessage)   # just write the message to radio
    print("Sent the message: {}".format(sendMessage))  # print a message after succesfull send
    radio.startListening()        # Start listening the radio

    while not radio.available(0):
        time.sleep(1/100)
        if time.time() - start > 2:
            print("Timed out.")  # print errror message if radio disconnected or not functioning anymore
            break

    radio.stopListening()     # close radio
    time.sleep(3)  # give delay of 3 seconds

lib_nrf24.py:

#!/usr/bin/python3
# -*- coding: utf-8 -*-
#


# This file lib_nrf24.py is a slightly tweaked version of Barraca's "pynrf24".

# So this is my tweak for Raspberry Pi and "Virtual GPIO" ...
#       ... of Barraca's port to BeagleBone python ...  (Joao Paulo Barraca <[email protected]>)
#                ... of maniacbug's NRF24L01 C++ library for Arduino.
# Brian Lavery Oct 2014



#    This program is free software: you can redistribute it and/or modify
#    it under the terms of the GNU General Public License as published by
#    the Free Software Foundation, either version 3 of the License, or
#    (at your option) any later version.
#
#    This program is distributed in the hope that it will be useful,
#    but WITHOUT ANY WARRANTY; without even the implied warranty of
#    MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
#    GNU General Public License for more details.
#


import sys
import time

if __name__ == '__main__':
    print (sys.argv[0], 'is an importable module:')
    print ("...  from", sys.argv[0], "import lib_nrf24")
    print ("")

    exit()

def _BV(x):
    return 1 << x


class NRF24:
    MAX_CHANNEL = 127
    MAX_PAYLOAD_SIZE = 32

    # PA Levels
    PA_MIN = 0
    PA_LOW = 1
    PA_HIGH = 2
    PA_MAX = 3
    PA_ERROR = 4

    # Bit rates
    BR_1MBPS = 0
    BR_2MBPS = 1
    BR_250KBPS = 2

    # CRC
    CRC_DISABLED = 0
    CRC_8 = 1
    CRC_16 = 2
    CRC_ENABLED = 3

    # Registers
    CONFIG = 0x00
    EN_AA = 0x01
    EN_RXADDR = 0x02
    SETUP_AW = 0x03
    SETUP_RETR = 0x04
    RF_CH = 0x05
    RF_SETUP = 0x06
    STATUS = 0x07
    OBSERVE_TX = 0x08
    CD = 0x09
    RX_ADDR_P0 = 0x0A
    RX_ADDR_P1 = 0x0B
    RX_ADDR_P2 = 0x0C
    RX_ADDR_P3 = 0x0D
    RX_ADDR_P4 = 0x0E
    RX_ADDR_P5 = 0x0F
    TX_ADDR = 0x10
    RX_PW_P0 = 0x11
    RX_PW_P1 = 0x12
    RX_PW_P2 = 0x13
    RX_PW_P3 = 0x14
    RX_PW_P4 = 0x15
    RX_PW_P5 = 0x16
    FIFO_STATUS = 0x17
    DYNPD = 0x1C
    FEATURE = 0x1D


    # Bit Mnemonics */
    MASK_RX_DR = 6
    MASK_TX_DS = 5
    MASK_MAX_RT = 4
    EN_CRC = 3
    CRCO = 2
    PWR_UP = 1
    PRIM_RX = 0
    ENAA_P5 = 5
    ENAA_P4 = 4
    ENAA_P3 = 3
    ENAA_P2 = 2
    ENAA_P1 = 1
    ENAA_P0 = 0
    ERX_P5 = 5
    ERX_P4 = 4
    ERX_P3 = 3
    ERX_P2 = 2
    ERX_P1 = 1
    ERX_P0 = 0
    AW = 0
    ARD = 4
    ARC = 0
    PLL_LOCK = 4
    RF_DR = 3
    RF_PWR = 6
    RX_DR = 6
    TX_DS = 5
    MAX_RT = 4
    RX_P_NO = 1
    TX_FULL = 0
    PLOS_CNT = 4
    ARC_CNT = 0
    TX_REUSE = 6
    FIFO_FULL = 5
    TX_EMPTY = 4
    RX_FULL = 1
    RX_EMPTY = 0
    DPL_P5 = 5
    DPL_P4 = 4
    DPL_P3 = 3
    DPL_P2 = 2
    DPL_P1 = 1
    DPL_P0 = 0
    EN_DPL = 2
    EN_ACK_PAY = 1
    EN_DYN_ACK = 0

    # Instruction Mnemonics
    R_REGISTER = 0x00
    W_REGISTER = 0x20
    REGISTER_MASK = 0x1F
    ACTIVATE = 0x50
    R_RX_PL_WID = 0x60
    R_RX_PAYLOAD = 0x61
    W_TX_PAYLOAD = 0xA0
    W_ACK_PAYLOAD = 0xA8
    FLUSH_TX = 0xE1
    FLUSH_RX = 0xE2
    REUSE_TX_PL = 0xE3
    NOP = 0xFF


    # Non-P omissions
    LNA_HCURR = 0x00

    # P model memory Map
    RPD = 0x09

    # P model bit Mnemonics
    RF_DR_LOW = 5
    RF_DR_HIGH = 3
    RF_PWR_LOW = 1
    RF_PWR_HIGH = 2

    # Signal Mnemonics
    LOW = 0
    HIGH = 1

    datarate_e_str_P = ["1MBPS", "2MBPS", "250KBPS"]
    model_e_str_P = ["nRF24L01", "nRF24l01+"]
    crclength_e_str_P = ["Disabled", "8 bits", "16 bits"]
    pa_dbm_e_str_P = ["PA_MIN", "PA_LOW", "PA_MED", "PA_HIGH"]
    child_pipe = [RX_ADDR_P0, RX_ADDR_P1, RX_ADDR_P2, RX_ADDR_P3, RX_ADDR_P4, RX_ADDR_P5]

    child_payload_size = [RX_PW_P0, RX_PW_P1, RX_PW_P2, RX_PW_P3, RX_PW_P4, RX_PW_P5]
    child_pipe_enable = [ERX_P0, ERX_P1, ERX_P2, ERX_P3, ERX_P4, ERX_P5]

    GPIO = None
    spidev = None

    def __init__(self, gpio, spidev):
        # It should be possible to instantiate multiple objects, with different GPIO / spidev
        # EG on Raspberry, one could be RPI GPIO & spidev module, other could be virtual-GPIO
        # On rpi, only bus 0 is supported here, not bus 1 of the model B plus
        self.GPIO = gpio   # the GPIO module
        self.spidev = spidev # the spidev object/instance
        self.channel = 76
        self.data_rate = NRF24.BR_1MBPS
        self.wide_band = False # 2Mbs data rate in use?
        self.p_variant = False # False for RF24L01 and true for RF24L01P (nrf24l01+)
        self.payload_size = 5 #*< Fixed size of payloads
        self.ack_payload_available = False #*< Whether there is an ack payload waiting
        self.dynamic_payloads_enabled = False #*< Whether dynamic payloads are enabled.
        self.ack_payload_length = 5 #*< Dynamic size of pending ack payload.
        self.pipe0_reading_address = None #*< Last address set on pipe 0 for reading.

    def ce(self, level):
        if self.ce_pin == 0:
            return
        # rf24-CE is optional. Tie to HIGH if not used. (Altho, left floating seems to read HIGH anyway??? - risky!)
        # Some RF24 modes may NEED control over CE.
        # non-powerdown, fixed PTX or RTX role, dynamic payload size & ack-payload:    does NOT need CE.
        if level == NRF24.HIGH:
            self.GPIO.output(self.ce_pin, self.GPIO.HIGH)
        else:
            self.GPIO.output(self.ce_pin, self.GPIO.LOW)
        return



    def read_register(self, reg, blen=1):
        buf = [NRF24.R_REGISTER | ( NRF24.REGISTER_MASK & reg )]
        for col in range(blen):
            buf.append(NRF24.NOP)

        resp = self.spidev.xfer2(buf)
        if blen == 1:
            return resp[1]

        return resp[1:blen + 1]

    def write_register(self, reg, value, length=-1):
        buf = [NRF24.W_REGISTER | ( NRF24.REGISTER_MASK & reg )]
        ###if isinstance(value, (int, long)):   # ng for python3. but value should never be long anyway
        if isinstance(value, int):
            if length < 0:
                length = 1

            length = min(4, length)
            for i in range(length):
                buf.insert(1, int(value & 0xff))
                value >>= 8

        elif isinstance(value, list):
            if length < 0:
                length = len(value)

            for i in range(min(len(value), length)):
                buf.append(int(value[len(value) - i - 1] & 0xff))
        else:
            raise Exception("Value must be int or list")

        return self.spidev.xfer2(buf)[0]


    def write_payload(self, buf):
        data_len = min(self.payload_size, len(buf))
        blank_len = 0
        if not self.dynamic_payloads_enabled:
            blank_len = self.payload_size - data_len

        txbuffer = [NRF24.W_TX_PAYLOAD]
        for n in buf:
            t = type(n)
            if t is str:
                txbuffer.append(ord(n))
            elif t is int:
                txbuffer.append(n)
            else:
                raise Exception("Only ints and chars are supported: Found " + str(t))

        if blank_len != 0:
            blank = [0x00 for i in range(blank_len)]
            txbuffer.extend(blank)

        return self.spidev.xfer2(txbuffer)

    def read_payload(self, buf, buf_len=-1):
        if buf_len < 0:
            buf_len = self.payload_size
        data_len = min(self.payload_size, buf_len)
        blank_len = 0
        if not self.dynamic_payloads_enabled:
            blank_len = self.payload_size - data_len

        txbuffer = [NRF24.NOP for i in range(0, blank_len + data_len + 1)]
        txbuffer[0] = NRF24.R_RX_PAYLOAD

        payload = self.spidev.xfer2(txbuffer)
        del buf[:]
        buf.extend(payload[1:data_len + 1])
        return data_len

    def flush_rx(self):
        return self.spidev.xfer2([NRF24.FLUSH_RX])[0]

    def flush_tx(self):
        return self.spidev.xfer2([NRF24.FLUSH_TX])[0]

    def get_status(self):
        return self.spidev.xfer2([NRF24.NOP])[0]

    def print_status(self, status):
        status_str = "STATUS\t = 0x{0:02x} RX_DR={1:x} TX_DS={2:x} MAX_RT={3:x} RX_P_NO={4:x} TX_FULL={5:x}".format(
            status,
            1 if status & _BV(NRF24.RX_DR) else 0,
            1 if status & _BV(NRF24.TX_DS) else 0,
            1 if status & _BV(NRF24.MAX_RT) else 0,
            ((status >> NRF24.RX_P_NO) & 7),
            1 if status & _BV(NRF24.TX_FULL) else 0)

        print (status_str)

    def print_observe_tx(self, value):
        print ("Observe Tx: %02x   Lost Pkts: %d    Retries: %d" % (value, value >> NRF24.PLOS_CNT, value & 15))


    def print_byte_register(self, name, reg, qty=1):
        extra_tab = '\t' if len(name) < 8 else 0
        print ("%s\t%c =" % (name, extra_tab)),
        while qty > 0:
            print ("0x%02x" % (self.read_register(reg))),
            qty -= 1
            reg += 1

        print ("")

    def print_address_register(self, name, reg, qty=1):
        extra_tab = '\t' if len(name) < 8 else 0
        print ("%s\t%c =" % (name, extra_tab)),

        while qty > 0:
            qty -= 1
            buf = reversed(self.read_register(reg, 5))
            reg += 1
            sys.stdout.write(" 0x"),
            for i in buf:
                sys.stdout.write("%02x" % i)

        print ("")


    def setChannel(self, channel):
        self.channel = min(max(0, channel), NRF24.MAX_CHANNEL)
        self.write_register(NRF24.RF_CH, self.channel)

    def getChannel(self):
        return self.read_register(NRF24.RF_CH)

    def setPayloadSize(self, size):
        self.payload_size = min(max(size, 1), NRF24.MAX_PAYLOAD_SIZE)

    def getPayloadSize(self):
        return self.payload_size

    def printDetails(self):
        self.print_status(self.get_status())
        self.print_address_register("RX_ADDR_P0-1", NRF24.RX_ADDR_P0, 2)
        self.print_byte_register("RX_ADDR_P2-5", NRF24.RX_ADDR_P2, 4)
        self.print_address_register("TX_ADDR", NRF24.TX_ADDR)

        self.print_byte_register("RX_PW_P0-6", NRF24.RX_PW_P0, 6)
        self.print_byte_register("EN_AA", NRF24.EN_AA)
        self.print_byte_register("EN_RXADDR", NRF24.EN_RXADDR)
        self.print_byte_register("RF_CH", NRF24.RF_CH)
        self.print_byte_register("RF_SETUP", NRF24.RF_SETUP)
        self.print_byte_register("CONFIG", NRF24.CONFIG)
        self.print_byte_register("DYNPD/FEATURE", NRF24.DYNPD, 2)

        #
        print ("Data Rate\t = %s" % NRF24.datarate_e_str_P[self.getDataRate()])
        print ("Model\t\t = %s" % NRF24.model_e_str_P[self.isPVariant()])
        print ("CRC Length\t = %s" % NRF24.crclength_e_str_P[self.getCRCLength()])
        print ("PA Power\t = %s" % NRF24.pa_dbm_e_str_P[self.getPALevel()])

    def begin(self, csn_pin, ce_pin=0):   # csn & ce are RF24 terminology. csn = SPI's CE!
        # Initialize SPI bus..
        # ce_pin is for the rx=listen or tx=trigger pin on RF24 (they call that ce !!!)
        # CE optional (at least in some circumstances, eg fixed PTX PRX roles, no powerdown)
        # CE seems to hold itself as (sufficiently) HIGH, but tie HIGH is safer!
        self.spidev.open(0, csn_pin)
        self.ce_pin = ce_pin

        if ce_pin:
            self.GPIO.setup(self.ce_pin, self.GPIO.OUT)

        self.spidev.max_speed_hz = 8000000

        time.sleep(5 / 1000000.0)

        # Set 1500uS (minimum for 32B payload in ESB@250KBPS) timeouts, to make testing a little easier
        # WARNING: If this is ever lowered, either 250KBS mode with AA is broken or maximum packet
        # sizes must never be used. See documentation for a more complete explanation.
        self.write_register(NRF24.SETUP_RETR, (0b0100 << NRF24.ARD) | 0b1111)

        # Restore our default PA level
        self.setPALevel(NRF24.PA_MAX)

        # Determine if this is a p or non-p RF24 module and then
        # reset our data rate back to default value. This works
        # because a non-P variant won't allow the data rate to
        # be set to 250Kbps.
        if self.setDataRate(NRF24.BR_250KBPS):
            self.p_variant = True

        # Then set the data rate to the slowest (and most reliable) speed supported by all
        # hardware.
        self.setDataRate(NRF24.BR_1MBPS)

        # Initialize CRC and request 2-byte (16bit) CRC
        self.setCRCLength(NRF24.CRC_16)

        # Disable dynamic payloads, to match dynamic_payloads_enabled setting
        self.write_register(NRF24.DYNPD, 0)

        # Reset current status
        # Notice reset and flush is the last thing we do
        self.write_register(NRF24.STATUS, _BV(NRF24.RX_DR) | _BV(NRF24.TX_DS) | _BV(NRF24.MAX_RT))

        # Set up default configuration.  Callers can always change it later.
        # This channel should be universally safe and not bleed over into adjacent
        # spectrum.
        self.setChannel(self.channel)

        # Flush buffers
        self.flush_rx()
        self.flush_tx()

    def end(self):
        if self.spidev:
            self.spidev.close()
            self.spidev = None

    def startListening(self):
        self.write_register(NRF24.CONFIG, self.read_register(NRF24.CONFIG) | _BV(NRF24.PWR_UP) | _BV(NRF24.PRIM_RX))
        self.write_register(NRF24.STATUS, _BV(NRF24.RX_DR) | _BV(NRF24.TX_DS) | _BV(NRF24.MAX_RT))

        # Restore the pipe0 address, if exists
        if self.pipe0_reading_address:
            self.write_register(self.RX_ADDR_P0, self.pipe0_reading_address, 5)

        # Go!
        self.ce(NRF24.HIGH)

        # wait for the radio to come up (130us actually only needed)
        time.sleep(130 / 1000000.0)

    def stopListening(self):
        self.ce(NRF24.LOW)
        self.flush_tx()
        self.flush_rx()

    def powerDown(self):
        self.write_register(NRF24.CONFIG, self.read_register(NRF24.CONFIG) & ~_BV(NRF24.PWR_UP))

    def powerUp(self):
        self.write_register(NRF24.CONFIG, self.read_register(NRF24.CONFIG) | _BV(NRF24.PWR_UP))
        time.sleep(150 / 1000000.0)

    def write(self, buf):
        # Begin the write
        self.startWrite(buf)

        timeout = self.getMaxTimeout() #s to wait for timeout
        sent_at = time.time()

        while True:
            #status = self.read_register(NRF24.OBSERVE_TX, 1)
            status = self.get_status()
            if (status & (_BV(NRF24.TX_DS) | _BV(NRF24.MAX_RT))) or (time.time() - sent_at > timeout ):
                break
            time.sleep(10 / 1000000.0)
        #obs = self.read_register(NRF24.OBSERVE_TX)
        #self.print_observe_tx(obs)
        #self.print_status(status)
        # (for debugging)

        what = self.whatHappened()

        result = what['tx_ok']
        if what['tx_fail']:
            self.flush_tx();    # bl  - dont jam up the fifo
        # Handle the ack packet
        if what['rx_ready']:
            self.ack_payload_length = self.getDynamicPayloadSize()
            self.ack_payload_available = True              ## bl

        return result

    def startWrite(self, buf):
        # Transmitter power-up
        self.write_register(NRF24.CONFIG, (self.read_register(NRF24.CONFIG) | _BV(NRF24.PWR_UP) ) & ~_BV(NRF24.PRIM_RX))

        # Send the payload
        self.write_payload(buf)

        # Allons!
        if self.ce_pin:
            if self.GPIO.RPI_REVISION > 0:
                self.ce(self.GPIO.HIGH)
                time.sleep(10 / 1000000.0)
                self.ce(self.GPIO.LOW)
            else:
                # virtGPIO is slower. A 10 uSec pulse is better done with pulseOut():
                self.GPIO.pulseOut(self.ce_pin, self.GPIO.HIGH, 10)



    def getDynamicPayloadSize(self):
        return self.spidev.xfer2([NRF24.R_RX_PL_WID, NRF24.NOP])[1]

    def available(self, pipe_num=None):
        if not pipe_num:
            pipe_num = []

        status = self.get_status()
        result = False

        # Sometimes the radio specifies that there is data in one pipe but
        # doesn't set the RX flag...
        if status & _BV(NRF24.RX_DR) or (status & 0b00001110 != 0b00001110):
            result = True

        if result:
            # If the caller wants the pipe number, include that
            if len(pipe_num) >= 1:
                pipe_num[0] = ( status >> NRF24.RX_P_NO ) & 0b00000111

                # Clear the status bit

                # ??? Should this REALLY be cleared now?  Or wait until we
                # actually READ the payload?
        self.write_register(NRF24.STATUS, _BV(NRF24.RX_DR))

        # Handle ack payload receipt
        if status & _BV(NRF24.TX_DS):
            self.write_register(NRF24.STATUS, _BV(NRF24.TX_DS))

        return result

    def read(self, buf, buf_len=-1):
        # Fetch the payload
        self.read_payload(buf, buf_len)

        # was this the last of the data available?
        return self.read_register(NRF24.FIFO_STATUS) & _BV(NRF24.RX_EMPTY)

    def whatHappened(self):
        # Read the status & reset the status in one easy call
        # Or is that such a good idea?
        status = self.write_register(NRF24.STATUS, _BV(NRF24.RX_DR) | _BV(NRF24.TX_DS) | _BV(NRF24.MAX_RT))

        # Report to the user what happened
        tx_ok = status & _BV(NRF24.TX_DS)
        tx_fail = status & _BV(NRF24.MAX_RT)
        rx_ready = status & _BV(NRF24.RX_DR)
        return {'tx_ok': tx_ok, "tx_fail": tx_fail, "rx_ready": rx_ready}

    def openWritingPipe(self, value):
        # Note that the NRF24L01(+)
        # expects it LSB first.

        self.write_register(NRF24.RX_ADDR_P0, value, 5)
        self.write_register(NRF24.TX_ADDR, value, 5)

        max_payload_size = 32
        self.write_register(NRF24.RX_PW_P0, min(self.payload_size, max_payload_size))

    def openReadingPipe(self, child, address):
        # If this is pipe 0, cache the address.  This is needed because
        # openWritingPipe() will overwrite the pipe 0 address, so
        # startListening() will have to restore it.
        if child == 0:
            self.pipe0_reading_address = address

        if child <= 6:
            # For pipes 2-5, only write the LSB
            if child < 2:
                self.write_register(NRF24.child_pipe[child], address, 5)
            else:
                self.write_register(NRF24.child_pipe[child], address, 1)

            self.write_register(NRF24.child_payload_size[child], self.payload_size)

            # Note it would be more efficient to set all of the bits for all open
            # pipes at once.  However, I thought it would make the calling code
            # more simple to do it this way.
            self.write_register(NRF24.EN_RXADDR,
                                self.read_register(NRF24.EN_RXADDR) | _BV(NRF24.child_pipe_enable[child]))


    def closeReadingPipe(self, pipe):
        self.write_register(NRF24.EN_RXADDR,
            self.read_register(EN_RXADDR) & ~_BV(NRF24.child_pipe_enable[pipe]))


    def toggle_features(self):
        buf = [NRF24.ACTIVATE, 0x73]
        self.spidev.xfer2(buf)

    def enableDynamicPayloads(self):
        # Enable dynamic payload throughout the system
        self.write_register(NRF24.FEATURE, self.read_register(NRF24.FEATURE) | _BV(NRF24.EN_DPL))

        # If it didn't work, the features are not enabled
        if not self.read_register(NRF24.FEATURE):
            # So enable them and try again
            self.toggle_features()
            self.write_register(NRF24.FEATURE, self.read_register(NRF24.FEATURE) | _BV(NRF24.EN_DPL))

        # Enable dynamic payload on all pipes

        # Not sure the use case of only having dynamic payload on certain
        # pipes, so the library does not support it.
        self.write_register(NRF24.DYNPD, self.read_register(NRF24.DYNPD) | _BV(NRF24.DPL_P5) | _BV(NRF24.DPL_P4) | _BV(
            NRF24.DPL_P3) | _BV(NRF24.DPL_P2) | _BV(NRF24.DPL_P1) | _BV(NRF24.DPL_P0))

        self.dynamic_payloads_enabled = True


    def enableAckPayload(self):
        # enable ack payload and dynamic payload features
        self.write_register(NRF24.FEATURE,
                            self.read_register(NRF24.FEATURE) | _BV(NRF24.EN_ACK_PAY) | _BV(NRF24.EN_DPL))

        # If it didn't work, the features are not enabled
        if not self.read_register(NRF24.FEATURE):
            # So enable them and try again
            self.toggle_features()
            self.write_register(NRF24.FEATURE,
                                self.read_register(NRF24.FEATURE) | _BV(NRF24.EN_ACK_PAY) | _BV(NRF24.EN_DPL))

        # Enable dynamic payload on pipes 0 & 1
        self.write_register(NRF24.DYNPD, self.read_register(NRF24.DYNPD) | _BV(NRF24.DPL_P1) | _BV(NRF24.DPL_P0))

    def writeAckPayload(self, pipe, buf, buf_len):
        txbuffer = [NRF24.W_ACK_PAYLOAD | ( pipe & 0x7 )]

        max_payload_size = 32
        data_len = min(buf_len, max_payload_size)
        txbuffer.extend(buf[0:data_len])

        self.spidev.xfer2(txbuffer)

    def isAckPayloadAvailable(self):
        result = self.ack_payload_available
        self.ack_payload_available = False
        return result

    def isPVariant(self):
        return self.p_variant

    def setAutoAck(self, enable):
        if enable:
            self.write_register(NRF24.EN_AA, 0b111111)
        else:
            self.write_register(NRF24.EN_AA, 0)

    def setAutoAckPipe(self, pipe, enable):
        if pipe <= 6:
            en_aa = self.read_register(NRF24.EN_AA)
            if enable:
                en_aa |= _BV(pipe)
            else:
                en_aa &= ~_BV(pipe)

            self.write_register(NRF24.EN_AA, en_aa)

    def testCarrier(self):
        return self.read_register(NRF24.CD) & 1

    def testRPD(self):
        return self.read_register(NRF24.RPD) & 1

    def setPALevel(self, level):
        setup = self.read_register(NRF24.RF_SETUP)
        setup &= ~( _BV(NRF24.RF_PWR_LOW) | _BV(NRF24.RF_PWR_HIGH))
        # switch uses RAM (evil!)
        if level == NRF24.PA_MAX:
            setup |= (_BV(NRF24.RF_PWR_LOW) | _BV(NRF24.RF_PWR_HIGH))
        elif level == NRF24.PA_HIGH:
            setup |= _BV(NRF24.RF_PWR_HIGH)
        elif level == NRF24.PA_LOW:
            setup |= _BV(NRF24.RF_PWR_LOW)
        elif level == NRF24.PA_MIN:
            nop = 0
        elif level == NRF24.PA_ERROR:
            # On error, go to maximum PA
            setup |= (_BV(NRF24.RF_PWR_LOW) | _BV(NRF24.RF_PWR_HIGH))

        self.write_register(NRF24.RF_SETUP, setup)


    def getPALevel(self):
        power = self.read_register(NRF24.RF_SETUP) & (_BV(NRF24.RF_PWR_LOW) | _BV(NRF24.RF_PWR_HIGH))

        if power == (_BV(NRF24.RF_PWR_LOW) | _BV(NRF24.RF_PWR_HIGH)):
            return NRF24.PA_MAX
        elif power == _BV(NRF24.RF_PWR_HIGH):
            return NRF24.PA_HIGH
        elif power == _BV(NRF24.RF_PWR_LOW):
            return NRF24.PA_LOW
        else:
            return NRF24.PA_MIN

    def setDataRate(self, speed):
        result = False
        setup = self.read_register(NRF24.RF_SETUP)

        # HIGH and LOW '00' is 1Mbs - our default
        self.wide_band = False
        setup &= ~(_BV(NRF24.RF_DR_LOW) | _BV(NRF24.RF_DR_HIGH))

        if speed == NRF24.BR_250KBPS:
            # Must set the RF_DR_LOW to 1 RF_DR_HIGH (used to be RF_DR) is already 0
            # Making it '10'.
            self.wide_band = False
            setup |= _BV(NRF24.RF_DR_LOW)
        else:
            # Set 2Mbs, RF_DR (RF_DR_HIGH) is set 1
            # Making it '01'
            if speed == NRF24.BR_2MBPS:
                self.wide_band = True
                setup |= _BV(NRF24.RF_DR_HIGH)
            else:
                # 1Mbs
                self.wide_band = False

        self.write_register(NRF24.RF_SETUP, setup)

        # Verify our result
        if self.read_register(NRF24.RF_SETUP) == setup:
            result = True
        else:
            self.wide_band = False
        return result

    def getDataRate(self):
        dr = self.read_register(NRF24.RF_SETUP) & (_BV(NRF24.RF_DR_LOW) | _BV(NRF24.RF_DR_HIGH))
        # Order matters in our case below
        if dr == _BV(NRF24.RF_DR_LOW):
            # '10' = 250KBPS
            return NRF24.BR_250KBPS
        elif dr == _BV(NRF24.RF_DR_HIGH):
            # '01' = 2MBPS
            return NRF24.BR_2MBPS
        else:
            # '00' = 1MBPS
            return NRF24.BR_1MBPS


    def setCRCLength(self, length):
        config = self.read_register(NRF24.CONFIG) & ~( _BV(NRF24.CRC_16) | _BV(NRF24.CRC_ENABLED))

        if length == NRF24.CRC_DISABLED:
            # Do nothing, we turned it off above.
            self.write_register(NRF24.CONFIG, config)
            return
        elif length == NRF24.CRC_8:
            config |= _BV(NRF24.CRC_ENABLED)
            config |= _BV(NRF24.CRC_8)
        else:
            config |= _BV(NRF24.CRC_ENABLED)
            config |= _BV(NRF24.CRC_16)

        self.write_register(NRF24.CONFIG, config)

    def getCRCLength(self):
        result = NRF24.CRC_DISABLED
        config = self.read_register(NRF24.CONFIG) & ( _BV(NRF24.CRCO) | _BV(NRF24.EN_CRC))

        if config & _BV(NRF24.EN_CRC):
            if config & _BV(NRF24.CRCO):
                result = NRF24.CRC_16
            else:
                result = NRF24.CRC_8

        return result

    def disableCRC(self):
        disable = self.read_register(NRF24.CONFIG) & ~_BV(NRF24.EN_CRC)
        self.write_register(NRF24.CONFIG, disable)

    def setRetries(self, delay, count):
        # see specs. Delay code below 5 can conflict with some ACK lengths
        # and count should be set = 0 for non-ACK modes
        self.write_register(NRF24.SETUP_RETR, (delay & 0xf) << NRF24.ARD | (count & 0xf))

    def getRetries(self):
        return self.read_register(NRF24.SETUP_RETR)

    def getMaxTimeout(self):        # seconds
        retries = self.getRetries()
        tout = (((250+(250*((retries& 0xf0)>>4 ))) * (retries & 0x0f)) / 1000000.0 * 2) + 0.008
        # Fudged up to about double Barraca's calculation
        # Was too short & was timeing out wrongly.    BL
        return tout

On an Arduino Nano, I had this code:

NRF24L01.ino:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
#include<SPI.h>
#include<RF24.h>

// Loosely based on: https://circuitdigest.com/microcontroller-projects/wireless-rf-communication-between-arduino-and-raspberry-pi-using-nrf24l01


RF24 radio(7, 8);

int count = 0;
unsigned long lastTime = 0;

void setup()
{
  pinMode(2, OUTPUT);
  pinMode(3, OUTPUT);
  pinMode(4, OUTPUT);

  //while (!Serial);
  Serial.begin(9600) ;     // start serial monitor baud rate

  radio.begin();
  radio.setPALevel(RF24_PA_MIN);
  radio.setChannel(0x76);
  radio.setPayloadSize(15);
  const uint64_t pipe = 0xE0E0F1F1E0LL;
  radio.openReadingPipe(0, pipe);
  //radio.enableDynamicPayloads();
  radio.powerUp();
  radio.startListening();
}

void loop()
{
  bool msgReceived = false;
  digitalWrite(2, count & 1 ? HIGH : LOW);
  digitalWrite(3, count & 2 ? HIGH : LOW);
  digitalWrite(4, count & 4 ? HIGH : LOW);

  while (lastTime + 4000 > millis())
  {
    if (radio.available())
    {
      char receivedMessage[32] = {0} ;
      radio.read(receivedMessage, sizeof(receivedMessage));
      radio.stopListening();
      radio.startListening();
      Serial.println(receivedMessage);
      msgReceived = true;
    }
  }

  if (!msgReceived)
    Serial.println("No message received " + String(count));

  lastTime = millis();
  count++;
}

Arduino Nano Photos:

RPI NRF Board Wiring

Because the Nano is 5V, I used a NRF24L01 adapter module.

It did work, but I wanted to use C# and .Net and the NRF24L01 driver in the dotnet iot project didn’t work without modification:

.Net Code (using dotnet iot library):

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
using System;
using System.Text;
using System.Threading;
using System.Device.Gpio;
using System.Device.Spi;
using Iot.Device.Nrf24l01;
using System.Collections.Generic;

// See https://github.com/dotnet/iot for System.Device.Gpio source code and help

namespace RF24Lib
{
    /// <summary>
    /// Control NRF24L01 board
    /// </summary>
    public class RF24Controller
    {
        private SpiDevice senderDevice;
        private GpioController _controller;
        private bool _disposed = false;

        public RF24Controller(GpioController controller)
        {
            _controller = controller;
        }

        public void Initialize()
        {
            // SPI0 CS0
            SpiConnectionSettings senderSettings = new SpiConnectionSettings(0, 0)
            {
                ClockFrequency = Nrf24l01.SpiClockFrequency,
                Mode = Nrf24l01.SpiMode
            };
            senderDevice = SpiDevice.Create(senderSettings);
        }

        public void SendMessage(string msg)
        {
            // SPI Device, CE Pin, IRQ Pin, Receive Packet Size
            //using (Nrf24l01 sender = new Nrf24l01(senderDevice, 25, 22, 32, 0x76, OutputPower.N18dBm, DataRate.Rate1Mbps)) //, PinNumberingScheme.Logical, _controller, false))
            Nrf24l01 sender = new Nrf24l01(senderDevice, 25, 22, 15, 0x76, OutputPower.N18dBm, DataRate.Rate1Mbps);
            var addr = new byte[] { 0xE0, 0xF1, 0xF1, 0xE0, 0xE0 };
            sender.Address = addr; //Encoding.UTF8.GetBytes("NRF24");
            WriteRegister(0, (byte)(ReadRegister(0)[0] | 0x04));        // Set CRC to 2 bytes rather than 1 byte
            WriteRegister(0x1c, 0x3f);  // Set dynamic payload for all pipes
            WriteRegister(0x1d, 0x04);  // enable dynamic payload, disable payload with ACK, disable W_TX_PAYLOAD_NOACK command

            var sendStr = new string[] { "test12345678901", "long string----", "short----------", "longer---------", "10 chars..-----", "four-----------" };   // 11 chars max

            for (int i = 0; i < 6; i++)
            {
                DisplayRegisters();

                // Set sender send address
                //sender.Send(Encoding.UTF8.GetBytes("Hello! .NET Core IoT"));
                sender.Send(Encoding.UTF8.GetBytes(sendStr[i]));

                Thread.Sleep(1000);
            }
        }

        internal byte[] ReadRegister(byte register, int len = 1)
        {
            Span<byte> writeBuf = stackalloc byte[1 + len];
            Span<byte> readBuf = stackalloc byte[1 + len];

            writeBuf[0] = (byte)(register);

            senderDevice.TransferFullDuplex(writeBuf, readBuf);

            return readBuf.Slice(1).ToArray();
        }

        internal void WriteRegister(byte register, byte data)
        {
            Span<byte> writeBuf = stackalloc byte[2]
            {
                (byte)(0x20 + (byte)register),
                data
            };
            Span<byte> readBuf = stackalloc byte[2];

            senderDevice.TransferFullDuplex(writeBuf, readBuf);
        }

        public void DisplayRegisters()
        {
            var registers = new List<byte>();

            Span<byte> writeBuf = stackalloc byte[1 + 1];
            Span<byte> readBuf = stackalloc byte[1 + 1];

            for (int reg = 0; reg <= 0x1d; reg++)
            {
                if (reg > 0x17 && reg < 0x1c)
                {
                    registers.Add(0);
                }
                else
                {
                    registers.Add(ReadRegister((byte)reg)[0]);
                }
            }

            var status = registers[7];
            var statStr = $"RX_DR={((status & 0x40) != 0 ? 1 : 0)} TX_DS={((status & 0x20) != 0 ? 1 : 0)} MAX_RT={((status & 0x10) != 0 ? 1 : 0)}" +
                          $"RX_P_NO={status & 0x0e >> 1} TX_FULL={((status & 0x01) != 0 ? 1 : 0)}";
            Console.WriteLine($"STATUS = 0x{status:x2} {statStr}");

            // Get RX and TX addresses
            var txAddrRaw = ReadRegister(0x10, 5);
            var rxAddrP0Raw = ReadRegister(0x0a, 5);
            var rxAddrP1Raw = ReadRegister(0x0b, 5);
            var rxAddrP2Raw = ReadRegister(0x0c, 5);
            var rxAddrP3Raw = ReadRegister(0x0d, 5);
            var rxAddrP4Raw = ReadRegister(0x0e, 5);
            var rxAddrP5Raw = ReadRegister(0x0f, 5);

            long txAddr = GetAddrFromRaw(txAddrRaw);
            long rxAddrP0 = GetAddrFromRaw(rxAddrP0Raw);
            long rxAddrP1 = GetAddrFromRaw(rxAddrP1Raw);
            long rxAddrP2 = GetAddrFromRaw(rxAddrP2Raw);
            long rxAddrP3 = GetAddrFromRaw(rxAddrP3Raw);
            long rxAddrP4 = GetAddrFromRaw(rxAddrP4Raw);
            long rxAddrP5 = GetAddrFromRaw(rxAddrP5Raw);

            //long txAddr = ((((rxAddrP0Raw[0] << 8) + txAddrRaw[1] << 8) + txAddrRaw[2] << 8) + txAddrRaw[3] << 8) + txAddrRaw[4];

            Console.WriteLine($"RX_ADDR_P0-1 = 0x{rxAddrP0:x10} 0x{rxAddrP1:x10}");
            Console.WriteLine($"RX_ADDR_P2-5 = 0x{rxAddrP2:x10} 0x{rxAddrP3:x10} 0x{rxAddrP4:x10} 0x{rxAddrP5:x10}");
            Console.WriteLine($"TX_ADDR = 0x{txAddr:x10}");

            Console.WriteLine($"EN_AA         = 0x{registers[1]:x2}");
            Console.WriteLine($"EN_RXADDR     = 0x{registers[2]:x2}");
            Console.WriteLine($"RF_CH         = 0x{registers[5]:x2}");
            Console.WriteLine($"RF_SETUP      = 0x{registers[6]:x2}");
            Console.WriteLine($"CONFIG        = 0x{registers[0]:x2}");
            Console.WriteLine($"DYNPD/FEATURE = 0x{registers[0x1c]:x2} 0x{registers[0x1d]:x2}");
            Console.WriteLine("");

            for (int reg = 0; reg < registers.Count; reg++)
            {
                Console.Write($"Reg {reg:x2} = 0x{registers[reg]:x2}          ");
            }
            Console.WriteLine("");
        }

        private long GetAddrFromRaw(byte[] raw)
        {
            //return BitConverter.ToInt64(raw, 0);
            return ((long)raw[0] << 32) + ((long)raw[1] << 24) + ((long)raw[2] << 16) + ((long)raw[3] << 8) + (long)raw[4];
        }

        public void Dispose()
        {
            Dispose(true);
            GC.SuppressFinalize(this);
        }

        protected virtual void Dispose(bool disposing)
        {
            if (_disposed) return;
            if (disposing)
            {
                senderDevice.Dispose();
            }

            // Free any unmanaged objects here.
            _disposed = true;
        }

        ~RF24Controller()
        {
            Dispose(false);
        }
   }
}
